27’ OCEAN SPORT

Written By Ethan Hermann

SPECIFICATIONS:

  • Deadrise: 20°

  • Bridge clearance (max): 9’ 1”

  • Bridge clearance (min): 8’ 1”

  • Height on trailer (max, 18” keel height): 12’ 5”

  • Height on trailer (min, 18” keel height): 11’ 5”

  • Forward berth: 7’ 8” x 5’ 2”

  • Aft stateroom: 6’ 10” x 4’ 10”

  • Cockpit dimensions: 8’ x 8’

  • Hull draft: 1’ 10”

  • Fuel capacity: 200 gallons

  • Potable water capacity: 40 gallons

  • Black water capacity: 25 gallons

  • Water heater capacity: 6 gallons

  • Bait tank capacity: 20 gallons

  • Length overall (LOA): 28’ 11”

  • Length max: 34’

  • Beam: 9’ 6”

  • Approx. dry weight: 8,500 lbs

Standard Features Include:

Propulsion

Single Suzuki 350 HP Dual Prop

Deck

  • Deck – molded non-skid surface in walking & working areas

  • Deck – raised walk-around side decks

  • Anchor roller assembly

  • 500 watt electric windlass with foot controls

  • Bow Rails – Deck, 1-1/4” Welded 316 SS

  • Hardtop hand rails – 1-1/4” 316 stainless steel

  • Aft bulkhead rails – 1-1/4” 316 stainless with drain tubes

  • Heavy duty stainless steel cleats (7)

  • Heavy duty windshield wipers with fresh water wash (3)

  • Heavy duty rub rail

  • Molded radar arch on hardtop

  • Garmin 24” XHD Fanthom Dome Radar

  • Single piece “Clear View” panoramic windshield

  • Bonded aft bulkhead windows (2)

  • Bonded side windows with opening sliders and bug screens (2)

  • Sliding main entry door

  • Hardtop – extends into cockpit 3’-10”

  • Electric HornForward berth hatch with bug screen (20” x 20”)

    Mid Berth

  • 4” foam mattress

  • Flooring – Seadek EVA foam (removable for cleaning)

  • Hand grab at step down

  • Touch control reading lights (2)

    Forward Berth

  • Touch control reading lights (3)

  • 4” foam mattress with filler

    Head

  • Fully enclosed head with locking door

  • Shower - Hot & Cold with pull out sprayer

  • Shower curtain

  • Macerating electric toilet with freshwater flush

  • Waterproof toilet paper holder

  • Black & Fresh water monitoring System

  • Towel ring & robe hook

  • Overhead lighting

Galley

  • Solid surface counter top – Hi Macs Volcanic Ice

  • Stainless Steel sink and faucet

  • 2 burner induction cooktop

  • AC/DC refrigerator

  • Storage cabinet below helm seat

  • Drawer bank (3) below sink

  • 110V outlet

Electrical System

  • 110V Outlets (2)

  • Inverted 110V Outlets (4)

  • 30 amp shore power connection

  • 120VAC resettable breaker panel

  • Victron Smart IP43 battery charger (30 amp, 3 bank)

  • Victron Multi Plus Inverter Charger – 3000W

  • Group 31 AGM 12 volt start battery (105 amp hour)

  • (4) GC2 6-volt batteries for house bank (380 amp hours

  • total)

  • Remote battery switches with manual backup

Commissioning

  • G-3 fenders (4)

  • Dock lines 5/8” x 25’ (4)

  • Life jackets (4)

  • Throwable life cushion

  • Flare kit

  • First aid kit

  • Fire extinguisher

  • Anchor rode – 1/2” x 200’ anchor line & 1/4” x 50’ HT chain

  • 33 lbs galvanized claw anchor

HULL

  • 5 year limited structural hull warranty

  • Color – white gel coat hull with black waterline stripe

  • Structural lamination knitted fiberglass with vinyl ester skin coat

  • Full length composite stringers

  • Swim platform w/boarding ladder

  • Trim tabs

  • Stainless steel & Marelon through hull fittings and deck fills

  • Heavy duty stainless steel bow eye

  • 316 stainless steel exterior fasteners

  • Bilge pumps with auto and manual switches

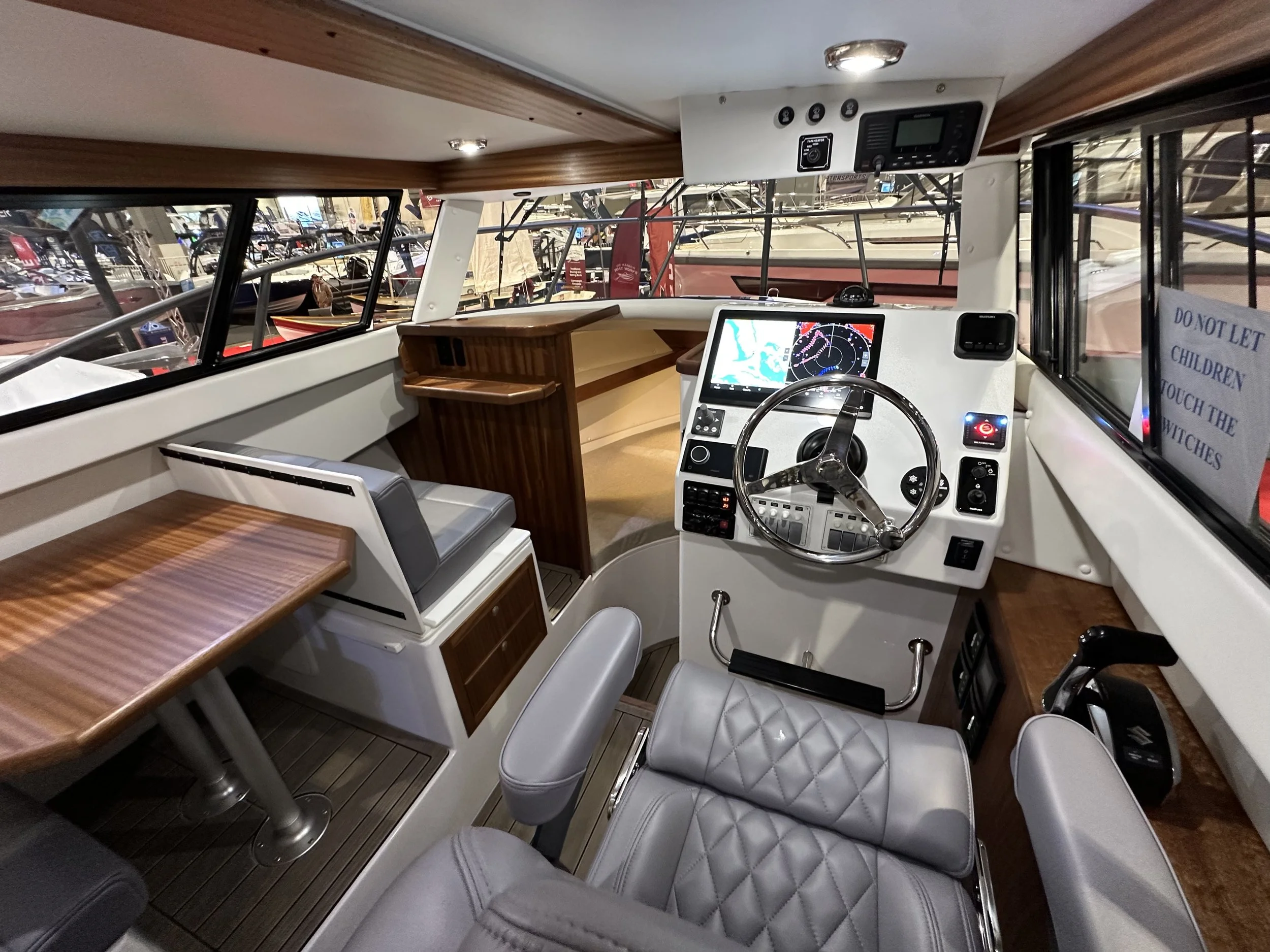

    Helm

  • Helm Seat – Shockwave suspension mount & black Corbin seat

  • Ritchie compass

  • 12VDC resettable circuit breaker panel

  • Footrest – stainless steel w/plastic step tread

  • Overhead console with defrost, VHF radio and wiper controls

  • Lower helm console with battery switches, switch panels, trim

    tab and windlass controls

  • Garmin 8612XSV multi function display

  • Victron 12 Volt electrical system monitoring panel

  • Sapele side console with main engine controls

  • Storage – Sapele cabinet below helm seat

  • 12V/USB combo outlet

    Salon

  • Flooring – Seadek EVA foam (removable for cleaning)

  • Convertible dinette table with two support legs

  • Dinette seat cushions – Ultra-Leather Granite

  • Adjustable dinette seating to converts to a forward facing

    seat

  • Hinged utility shelf over aft berth entry

  • Port dash console with 110V and 12V/USB outlets

  • Stainless steel overhead grab rail port & starboard

  • Sapele drawer bank (2 drawers)

  • Microwave oven

  • Ambient overhead lighting

  • Switchable overhead lighting

  • Salon stereo & speakers (4)

    Cockpit

  • Shelving below cockpit gunwales with built in toe kick

  • Cockpit stereo speakers (2)

  • 240 gallon fish hold

  • Fish hold pump out – switched at aft helm station

  • Tackle box – port forward corner of cockpit

  • Fresh water washdown – located aft port corner of cockpit

  • 20 gallon bait tank with pump & overboard drain

  • Cockpit courtesy lights (4)

  • Cockpit overhead light

  • Scupper drains in cockpit sole (2 x 1-1/2” and 2 x 2”)

  • Deck – molded non skid surface in walking & working areas

  • Starboard aft control station molded part with no controls

  • Sea water washdown

  • Door – hinged transom pass through with top opening gate

Mechanical / Utility Space

  • 6 gallon water heater

  • Fresh water pump

  • Waste pump out & locking overboard discharge valve

  • Mid bilge pump and auto float switch

  • Access to fresh water tank and fittings

  • LED utility light

Aft Bilge

  • LED bilge lighting

  • High capacity bilge pump with auto float switch

  • High water level bilge pump alarm

  • Victron Smart IP43 battery charger (30 amp, 3 bank)

  • Victron Multi Plus Inverter/Charger – 3000W

  • Fish hold pump

  • 150 amp accessory fuse panel

  • Bait tank circulation pump

  • Remote battery switches with manual backup
